TPS61240DRVR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS61240DRVR
Datasheet:
Description:

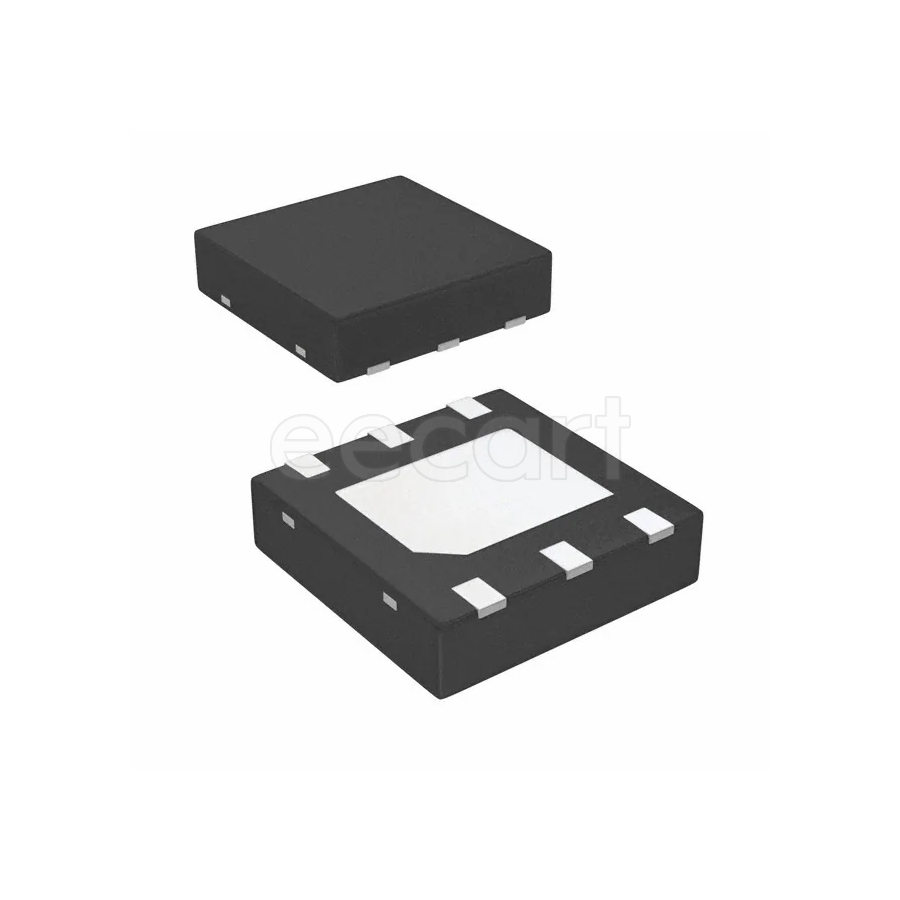

Voltage Regulators - Switching WSON-6 SMD/SMT Boost Fixed 5 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 800 µm |
| Thickness | 0.75 mm |
| Radiation Hardening | No |
| Contact Plating | Gold |
| Min Input Voltage | 2.3 V |
| Output Current | 450 mA |
| Output Voltage | 5 V |
| Operating Supply Voltage | 5.5 V |
| Output Type | Fixed |
| Lifecycle Status | Active |
| Min Supply Voltage | 2.3 V |
| Max Output Current | 450 mA |
| Quiescent Current | 30 µA |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 3.5 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 200 µA |
| Efficiency | 90 % |
| Min Output Voltage | 5 V |
| Max Output Voltage | 5 V |
| RoHS | Compliant |
| Packaging | Reel |
| Function | Step-Up |
Stock: 2201
Distributors
pcbx
pcbxUnit Price$0.48816
Ext.Price$0.48816
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48816 | $0.48816 |
| 10 | $0.38966 | $3.89660 |
| 25 | $0.35598 | $8.89950 |
| 50 | $0.32521 | $16.26050 |
| 100 | $0.29711 | $29.71100 |
| 300 | $0.28498 | $85.49400 |
| 500 | $0.27335 | $136.67500 |
| 1000 | $0.25851 | $258.51000 |
